AERODYNAMIC
STYLISH, SPORTY AND FAST – THE ABT AUDI A5
The Audi A5 was presented just 10 years ago. And now second generation of the A5 and of the S5 are already on the streets.
What has impressed the the engineers and designers at ABT Sportsline is the elegant design of all the vehicles from the outset – Sportback, Coupé and Cabriolet. For that reason the ABT Development department has turned its attention to the latest models by creating performance increases with an impressive body kit. The A5 engines are in no way unsporty and yet the ABT Sportsline offers extra power also for them. What’s more, it isn’t just the performance increases that are appealing. Hans-Jürgen Abt emphasizes “With the clear lines of its elongated, sporty body, the A5 is a perfectly designed, very individual vehicle,” and as such the change in appearance of the two trios due to the body kit draws some envious looks. He then continues: “Our body kit follows this as well – it underlines the sporty and the individual character of the vehicles.” An aggressive front spoiler and a distinctive rear skirt, received by all six versions, incorporate impeccably with the styling of the A5. A completion to the visual update is the respective 4-pipe rear muffler system.
All ABT Sportsline aerodynamic parts have been developed to are of highest quality and are produced to the highest standard and producer requirements.
All ABT parts are made using materials of highest quality and with TUV approval.
Some parts have to be painted prior to installation on the vehicle.
The aerodynamic program from ABT for Audi A5/S5 2016-2019 consists of the following items.

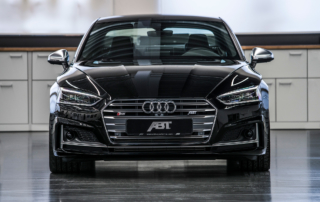

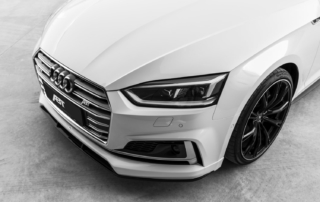

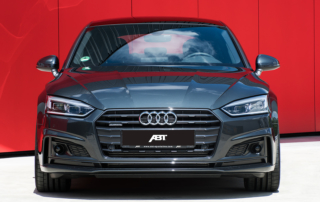

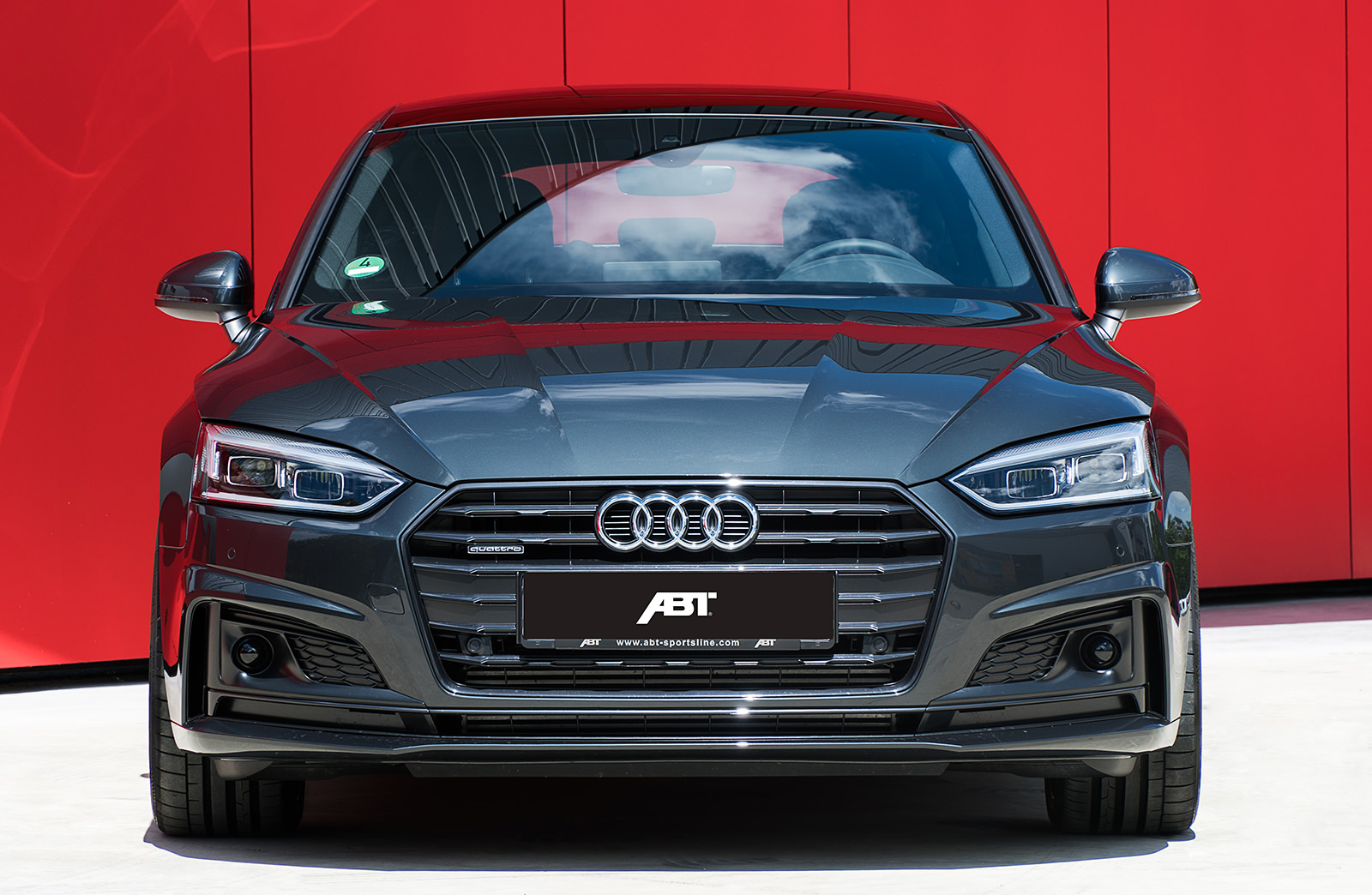

- ABT Front Spoiler

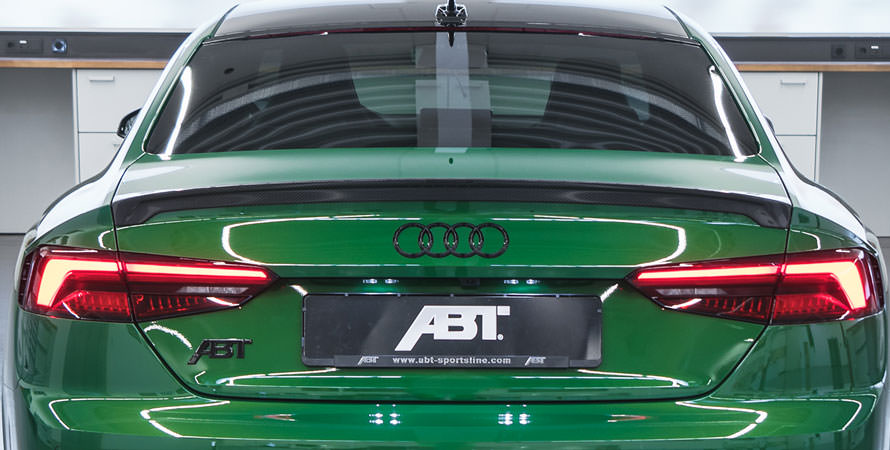

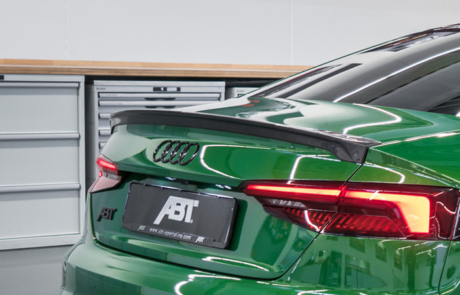

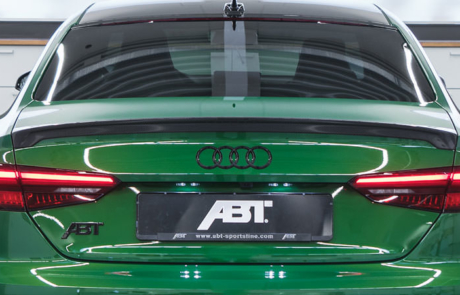

- ABT Rear Spoiler Carbon Gloss*

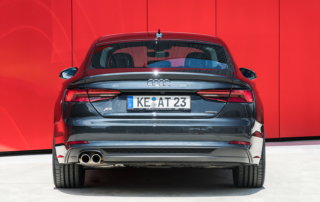

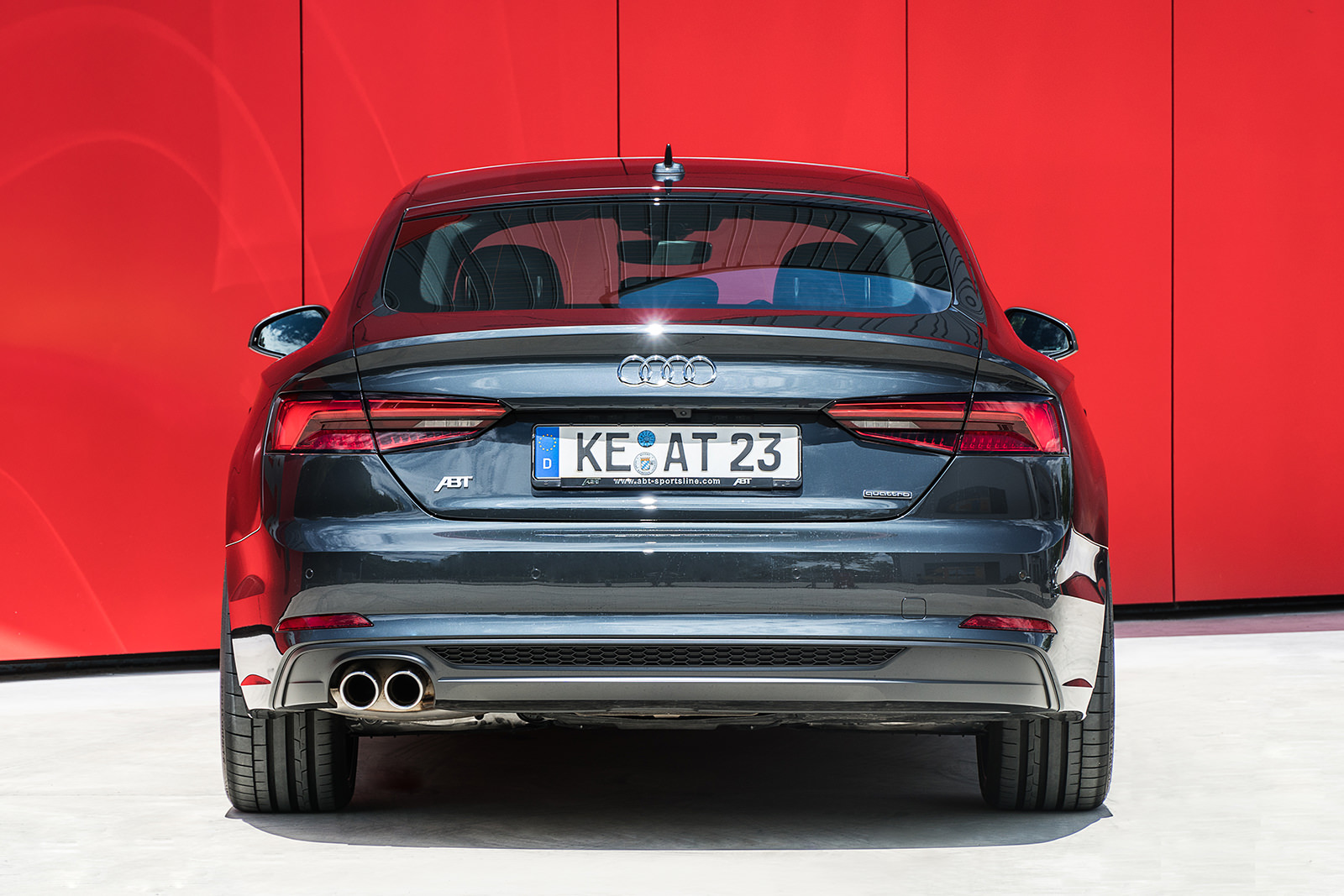

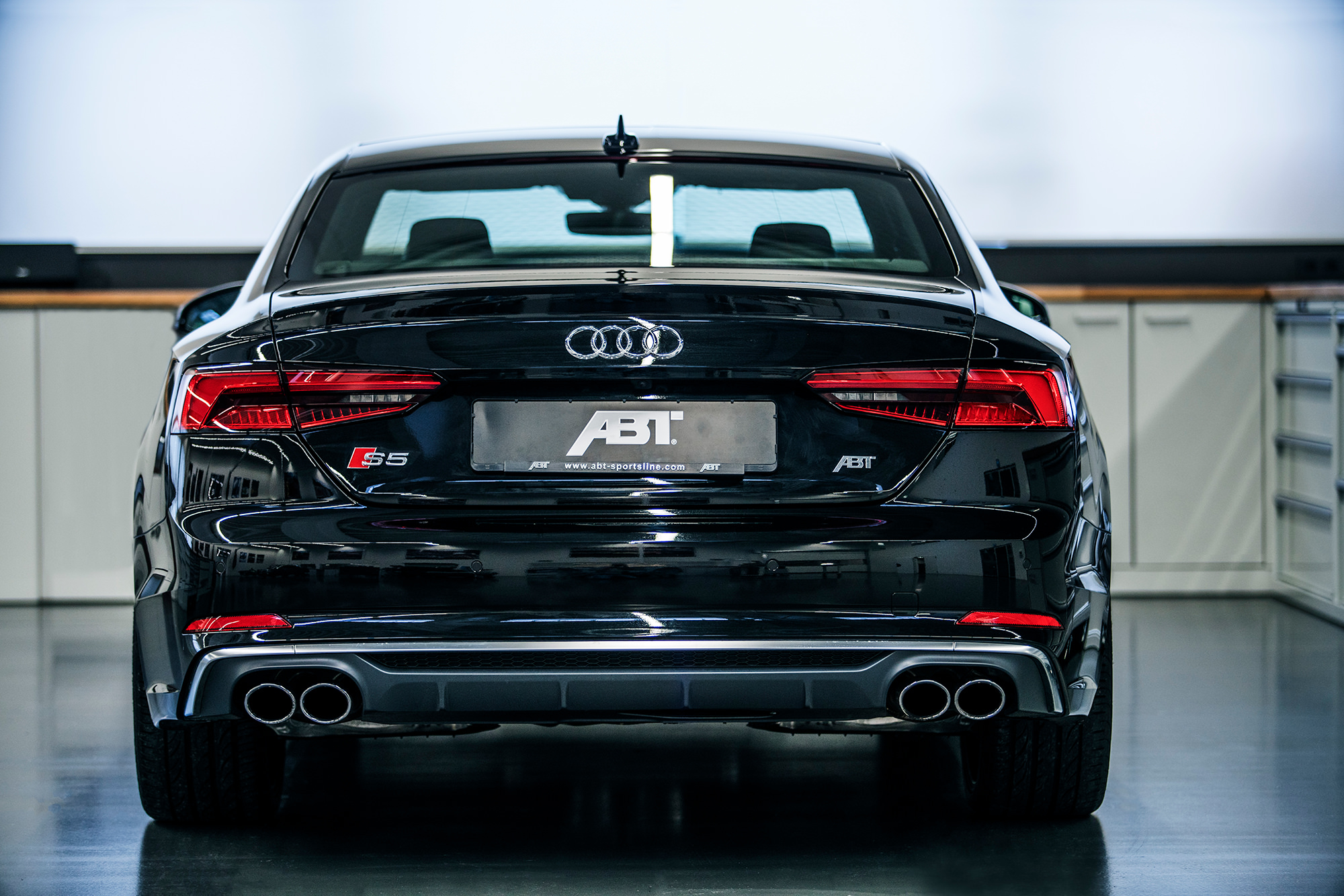

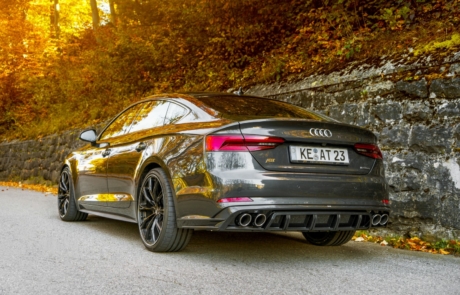

- ABT Rear Skirt Set including rear muffler and end pipes with engraved ABT logo
- This kit can only be mounted on Audi A5 with S-Line exterior package or on S5.
- *The rear spoiler cannot be mounted on Cabrio models!!!
- Can be mounted on A5/S5 Coupe and Sportback models.

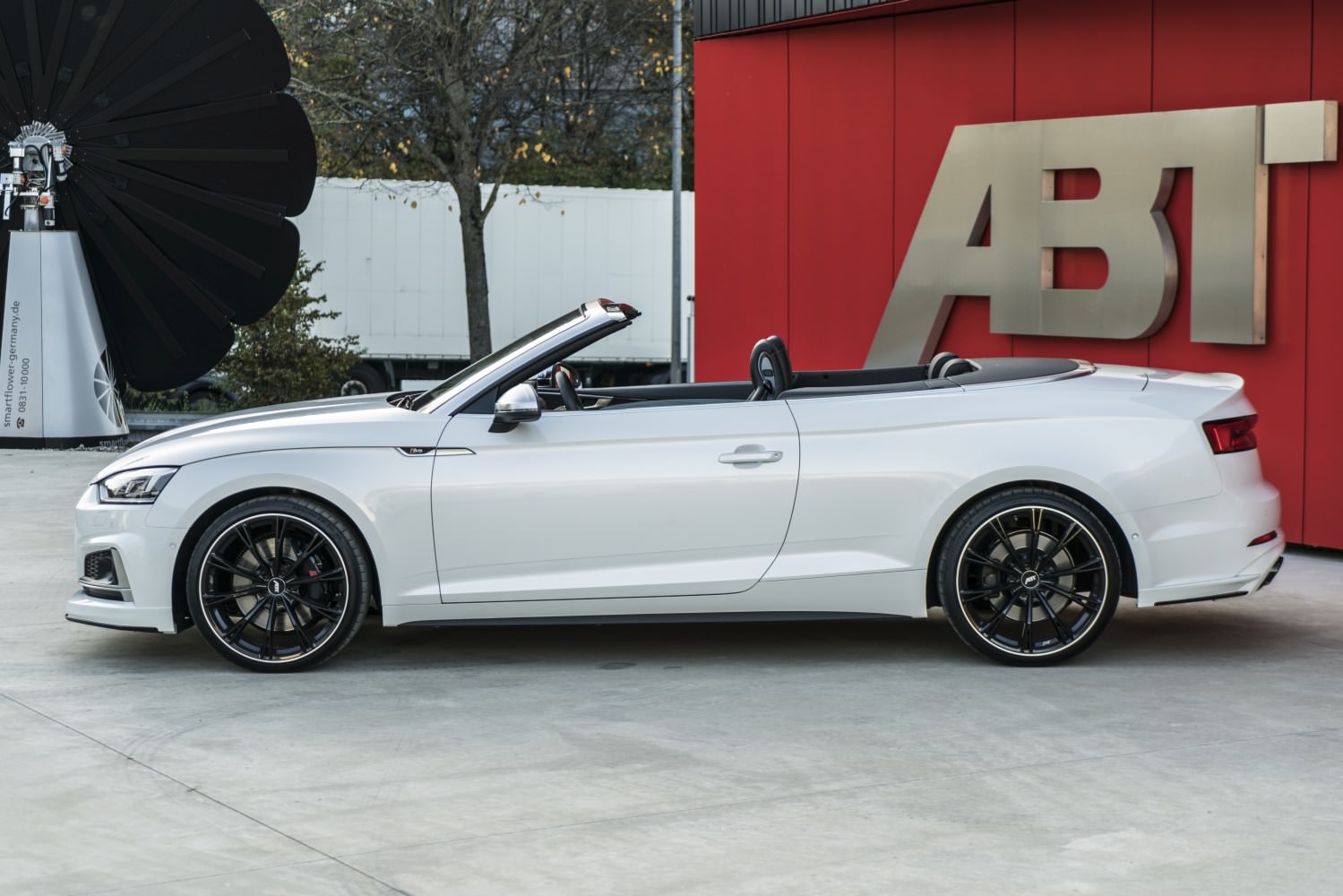

- Cannot be mounted on A5/S5 Cabrio models
- Material: Carbon fibre reinforced plastic (CFK)

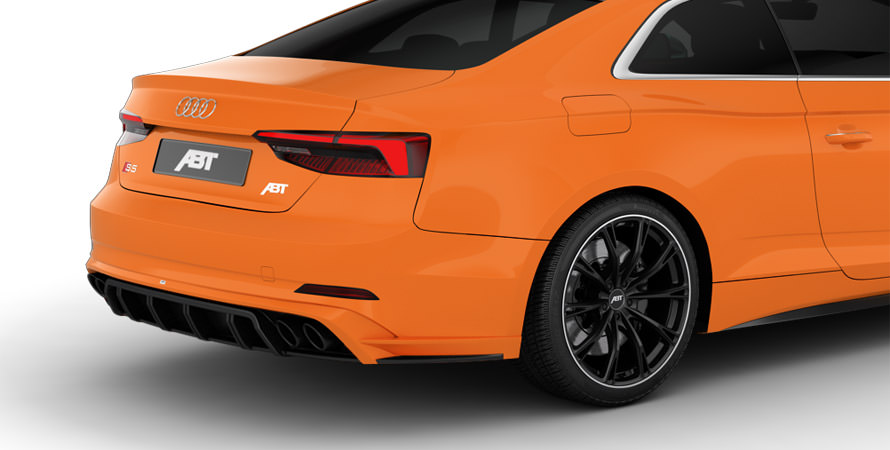

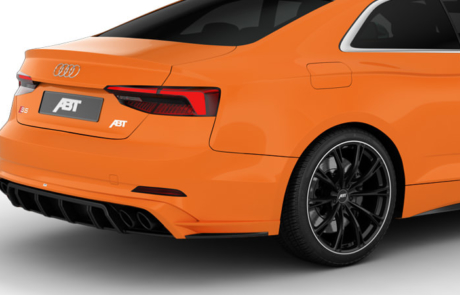

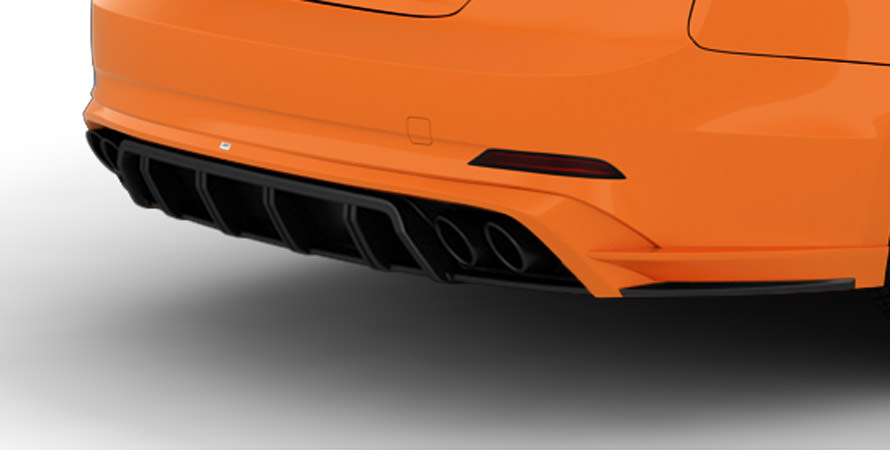

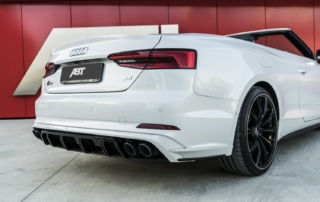

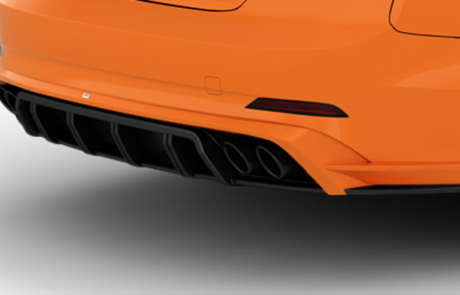

- ABT Rear Skirt Set
- ABT Sports Rear muffler Ø84mm with chromed end pipes and engraved ABT logo
- Can only be mounted on Audi A5 with S-Line exterior package or S5.
Delivery time is between 2-14 days depending on stock availabilities, production time and customer’s location.
Some of the items are optional can be ordered separately from the complete bodykit.
All complete bodykit orders have the following advantages:
- Additional Discount from overall price
- FREE SHIPPING to your address in European Union
- FREE SHIPPING to nearest International Airport CIF Terms for all International Customers.
ABT SPORTSLINE
EXTERIOR GALLERY
PERFORMANCE
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 2,0 TFSI 185 kW (252 PS), 370 Nm to approximately: 243 kW (330 PS), 440 Nm
- Engine code: CYRB
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: Audi A5 Sportback: Front Wheel Drive: Engine Code: CYRB: Press Here
- DATA SHEET with Performance results: Audi A5 Coupe: Quattro: Automatic: Engine Code: CYRB: Press Here
- DATA SHEET with Performance results: Audi A5 Sportback: Quattro: Manual: Engine Code: CYRB: Press Here
- DATA SHEET with Performance results: Audi A5 Coupe: Front Wheel Drive: Engine Code: CYRB: Press Here
- DATA SHEET with Performance results: Audi A5 Cabriolet: Quattro: Engine Code: CYRB: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 2,0 TFSI 185 kW (252 PS), 370 Nm to approximately: 243 kW (330 PS), 440 Nm
- Engine code: DDWA
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: Audi A5 Sportback: Front Wheel Drive: Engine Code: DDWA: Press Here
- DATA SHEET with Performance results: Audi A5 Coupe: Quattro: Automatic: Engine Code: DDWA: Press Here
- DATA SHEET with Performance results: Audi A5 Coupe: Quattro: Manual: Engine Code: DDWA: Press Here
- DATA SHEET with Performance results: Audi A5 Coupe: Front Wheel Drive: Engine Code: DDWA: Press Here
- DATA SHEET with Performance results: Audi A5 Cabriolet: Quattro: Engine Code: DDWA: Press Here
- DATA SHEET with Performance results: Audi A5 Cabriolet: Front Wheel Drive: Engine Code: DDWA: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 2,0 TDI 140 kW (190 PS), 400 Nm to approximately 158 kW (215 PS), 440 Nm
- Engine code: DETA
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: A5 Sportback Quattro – Automatic: Press Here
- DATA SHEET with Performance results: A5 Sportback: FWD: Manual: Press Here
- DATA SHEET with Performance results: A5 Sportback: FWD – Automatic: Press Here
- DATA SHEET with Performance results: A5 Coupe Quattro – Manual: Press Here
- DATA SHEET with Performance results: A5 Coupe Quattro – Automatic: Press Here
- DATA SHEET with Performance results: A5 Coupe: FWD – Manual: Press Here
- DATA SHEET with Performance results: A5 Coupe: FWD – Automatic: Press Here
- DATA SHEET with Performance results: A5 Cabrio: FWD – Automatic: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 3,0 TDI von 160 kW (218 PS), 400 Nm to approximately 184 kW (250 PS), 450 Nm
- Engine code: CSWB
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: A5 Sportback – Quattro – Automatic: Press Here
- DATA SHEET with Performance results: A5 Sportback – FWD – Automatic: Press Here
- DATA SHEET with Performance results: A5 Coupe – Quattro – Automatic: Press Here
- DATA SHEET with Performance results: A5 Coupe – FWD – Automatic: Press Here
- DATA SHEET with Performance results: A5 Cabrio – Quattro – Automatic: Press Here
- DATA SHEET with Performance results: A5 Cabrio – FWD – Automatic: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 3,0 TDI from 170 kW (231 HP), 500 Nm to approx. 197 kW (268 HP), 540 Nm
- Engine code: CRTC
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: A5 Sportback Quattro: Press Here
- DATA SHEET with Performance results: A5 Coupe Quattro: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 3,0 TDI 200 kW (272 PS), 600 Nm to approximately 239 kW (325 PS), 660 Nm
- Engine code: CRTC
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: A5 Sportback Quattro: Press Here
- DATA SHEET with Performance results: A5 Coupe Quattro: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi A5: 3,0 TDI from 210 kW (286 HP), 620 Nm to approx. 243 kW (330 HP), 670 Nm
- Engine code: DCPC
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: A5 Sportback Quattro: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi S5: 3,0 TDI from 255 kW (347 HP), 700 Nm to approx. 282 kW (384 HP), 760 Nm
- Engine code: DEWB
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: S5 Sportback Quattro: Press Here
- DATA SHEET with Performance results: S5 Coupe Quattro: Press Here
0hp
Serial Power
0Nm
Serial Torque
0hp
ABT Power
0Nm
ABT Torque
ABT Engine Control Unit
- Audi S5: 3,0 TFSI from 260 kW (354 HP), 500 Nm to approx. 313 kW (425 HP), 550 Nm
- Engine code: CWGD
- Set consisting of: ABT-ECU (AEC), bracket set, cable harness and mounting kit
- ABT Engine Control Unit: You will receive an additional ECU unit that works in parallel with the car’s ECU.
- You just need to plug in the new ECU and your vehicle is ready.
- The newest and safest power advancement technology that does not require any modifications to the serial ECU.
- In this technology, the ABT Power Software is used in an additional engine control unit, the ABT Engine Control (AEC). Thus, ABT ensures the high standard in performance increase also in new developments and increasing high-tech in vehicles.
- Your advantage: The serial engine control unit remains untouched and the vehicle is completely diagnosable. And when it comes to the quality of AEC, the high standards of the VW Group apply.
- DATA SHEET with Performance results: S5 Sportback Quattro: Press Here
- DATA SHEET with Performance results: S5 Coupe Quattro: Press Here
INTERIOR
- For Audi vehicles with serial integrated entrance lights*
- Set of 2 LED lights with ABT logo
- For front and passenger door
- LED light
- Projects the logo on the floor once the door is opened.
- Also suitable for vehicles with serial integrated entrance light with “Audi Sport“-logo.
- Installation: The serial light will be replaced by the ABT LED. The ABT LEDand housing has the same dimension as the serial light.
- With integrated illuminated ABT Logo
- The high-quality design with Start-Stop lettering fits any Audi cockpit perfectly.
- A real highlight is the sophisticated light distribution within the engraved ABT-logo
- Can also be fitted on vehicles with s-line selection
- Cannot be fitted on Right hand drive vehicles.
- Replaces the serial button.
- Leather / Carbon – with ABT logo.
- Can only be fitted on left hand drive vehicles with S-tronic or Tiptronic gearboxes.
- Cannot be fitted on vehicles with manual transmission.
WHEELS
It’s weight-optimised. Trued to perfection. Revolutionised in design. It has an undercut rim base. It’s packed with highlights, yet reduced to its most sensational feature: your driving pleasure.
- Colour: Mystic Black
- Size 19″: 8.5 x 19 – bolt circle: 5/112 – offset: 35 – hub diameter: 66.6 mm – ball: 26.0 mm
- Size 19″:9,5 x 20 – bolt circle: 5/112 – offset: 35 – center bore: 66,45 mm – ball: 25,6 mm*
- Size 20″: 9,0 x 20 – bolt circle: 5/112 – offset: 40 – hub diameter: 66,5 mm – ball: 25,6 mm*
- *Set of spacer discs is required and included in the package
- Elegant, sporty looks thanks to a perfect finish
- Optimal handling thanks to perfectly balanced weight
- Track widening, in special cases using ABT spacers
- Ultra-strong light metal alloys
- Corrosion protection
- Excellent rotational characteristics
- Strict quality controls that exceed legal requirements
Conceived for motorsport, built for the roads.
Elegant and refined down to the smallest detail. But also powerful and striking. Mystic black meets gleaming silver. The FR is the latest iteration of ABT Sportsline’s classic five-spoke design. Made from high-quality materials. Produced with devotion. A statement of intent.
- Colour: Mystic Black
- Size: 9,5 x 20 – bolt circle: 5/112 – offset: 35 – hub diameter: 66,45 mm
- Set of spacer discs is required and included in the package.
- Elegant, sporty looks thanks to a perfect finish
- Optimal handling thanks to perfectly balanced weight
- Track widening, in special cases using ABT spacers
- Ultra-strong light metal alloys
- Corrosion protection
- Excellent rotational characteristics
- Strict quality controls that exceed legal requirements
- Colour: Matt black / Diamond polished
- Size: 9,0 x 20 – bolt circle: 5/112 – offset: 33 – hub diameter: 66,5 mm
- Cannot be mounted on A6 3.0TDI Bi-Turbo 313hp.!!!
- Elegant, sporty looks thanks to a perfect finish
- Optimal handling thanks to perfectly balanced weight
- Track widening, in special cases using ABT spacers
- Ultra-strong light metal alloys
- Corrosion protection
- Excellent rotational characteristics
- Strict quality controls that exceed legal requirements
Wheel couture for your car. Athletic, defined and not a gram too many. A distinctive design feature is the strong concave rim base. Typical ABT: the perfect finish, in glossy black with diamond polished lip. Whatever you choose, the SPORT GR will provide your car with an impressive look.
- Colour: Glossy black / Diamond polished lip
- Size: 9,0 x 20 – bolt circle: 5/112 – offset: 33 – hub diameter: 66,5 mm
- Cannot be mounted on A6 3.0TDI Bi-Turbo 313hp.!!!
- Elegant, sporty looks thanks to a perfect finish
- Optimal handling thanks to perfectly balanced weight
- Track widening, in special cases using ABT spacers
- Ultra-strong light metal alloys
- Corrosion protection
- Excellent rotational characteristics
- Strict quality controls that exceed legal requirements
Impressive in appearance. Superior in finish. Exceptional in every way. But above all: unforgettable once you’ve experienced it in action. The cast ABT ER-C.
- Colour: Mystic Black
- Size 19″: 8,5 x 19 – bolt circle: 5/112 – offset: 35 – center bore: 66,45 mm – ball: 25,6 mm
- Size 20″: 9,0 x 20 – bolt circle: 5/112 – offset: 40 – hub diameter: 66,45 mm – ball: 25,6 mm*
- *Set of spacer discs is required for 20″ option and is included in the package.
- Elegant, sporty looks thanks to a perfect finish
- Optimal handling thanks to perfectly balanced weight
- Track widening, in special cases using ABT spacers
- Ultra-strong light metal alloys
- Corrosion protection
- Excellent rotational characteristics
- Strict quality controls that exceed legal requirements
VIDEO
ABT Audi A5 / S5 2016-2019 Video
